Graphene Antistatic Coating

       PIN SHUO self-developed graphene powder production technology, further development of a
       high concentration of graphene paste. So that the products have good affinity with a variety of resin,
       which can be directly inserted resin, reduce the graphene powder over swell, or dispersion concern
       in the end applications.

       Such the high concentration of graphene paste having a relatively highconductivity, only a small
       amount could meet the demand of antistatic in electronic products, which is an excellent antistatic additive.
       Consideration for some demands of translucent colloid, this antistatic additive is also half-translucent.

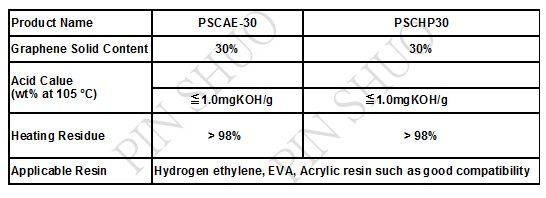

      Product Specification


      When the touch panel ITO finshed wiring moved to the module assembly line to prevent scratches
      or wear of the plate surface by removal, the panel need a peelable glue coated to protect panel wiring.
      Since the border and the circuit narrow refinement, peelable glue its pull on the line drive electrostatic
      shock and stripping colloid produced during stripping, often cause breakdown circuit.

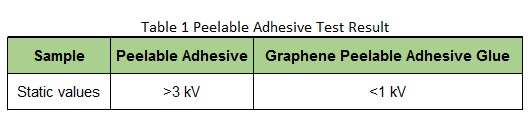

      Table 1 is a peelable adhesive test result, in a small amount after adding graphene antistatic additives,
      peelable adhesive peel electrostatic charge electrostatically effective management, reduce product damage.

      Fig. 1 is a peelable glue actual coating and stripping charge test case.




       Test Environment

       Temperature: 30 ℃
       Humidity: 50% RH
       Test Equipment: EFM022


      Graphene antistatic additives should take added 0.2wt% acrylic pressuresensitive adhesive, and use the

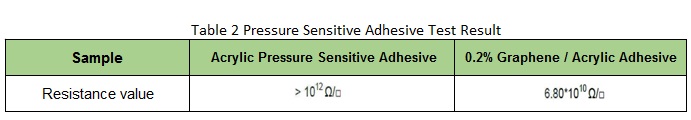

      high-impedance measurement to measure the resistance value.The actual test results are shown in Table 2,
      and add only 0.2wt% additive, it shows the resistance value decreased two notches at least.


    Test Environment

    Temperature: 29.5 ℃
    Humidity: 68% RH
    Test Equipment: Ohm-Stat RT-1000




     For this product, for a variety of resins and applications, graphene has a corresponding anti-static additives for use,
     and with conventional mixing equipment can be made simple graphene antistatic plastic. In addition,
     PIN SHUO team will match users on various other materials or in any process
     on demand in order to assist. We welcome you to contact us.
